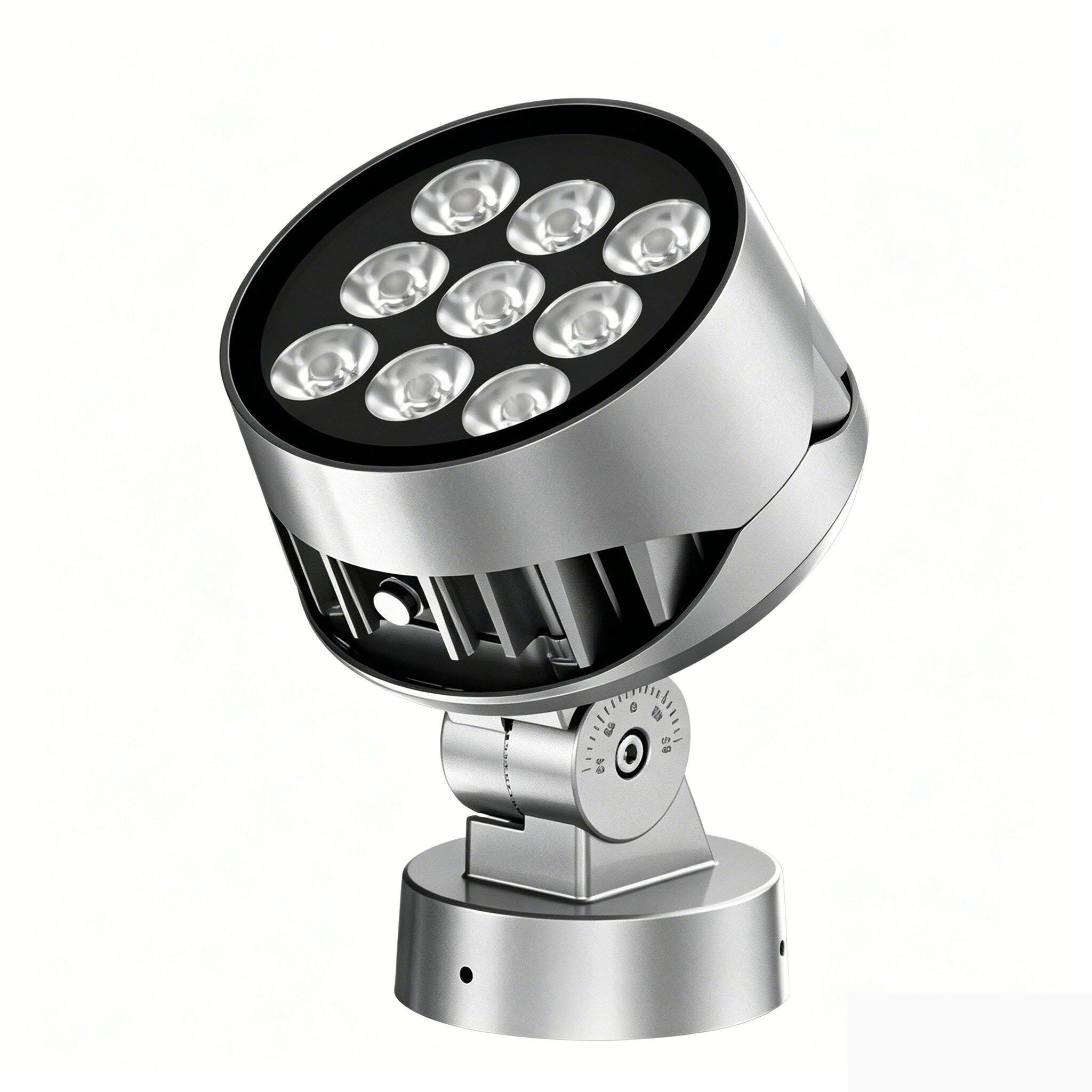

Pro-S-WW-RS2D185 Architectural Lighting Facade Light 9-LED 18W Single Color RGB RGBW

Characteristics

Innovative heat dissipation structure enabling 360° heat-free operation
Multiple antiglare accessories are available
12# Die-casting outdoor powder painting aluminum. T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B
Tempered glass. T=4mm
Lens effciency ≥85%
LED CREE
PCB Excellent heat conductivity aluminum, coefficient of heat conductivity ≥2.0w/mk
Driver constant current output
Operating temperature -20℃ to 40℃
Power cable H05RN-F 2*0.75mm² L=1m (24VDC) ; H05RN-F 3*0.75mm² L=1m (AC100-220V) ; H05RN-F 4*0.75mm² L=1m (for RGB) ; H05RN-F 5*0.75mm² L=1m (for RGBW)
Housing color: Grey/Black/Silver/White optional
Protection rating IP66

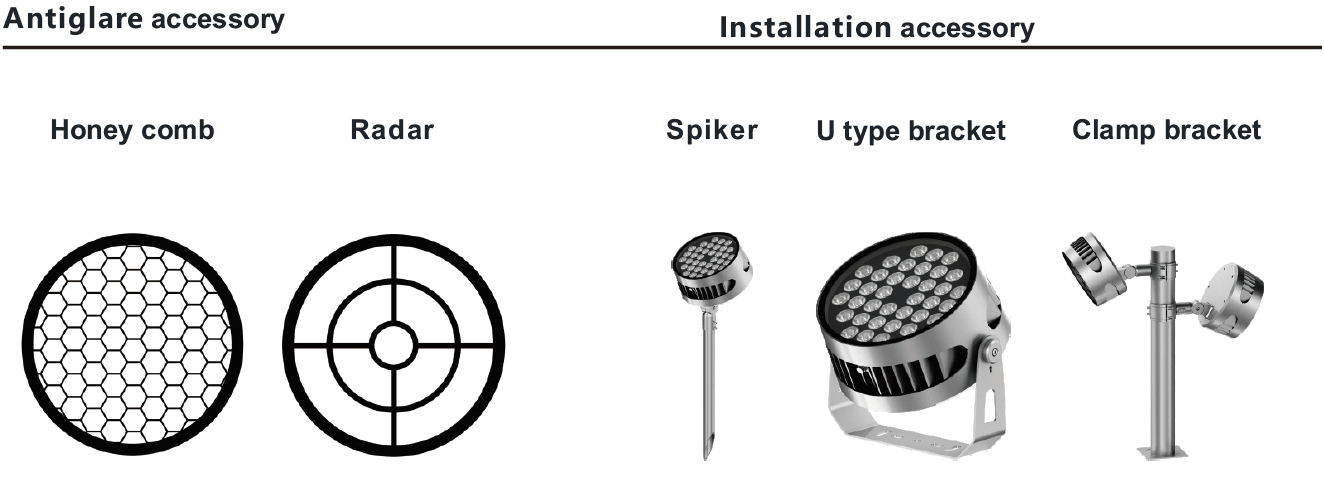

Surfaced mounting Base / Spike / U bracket / Clamp bracket
Antiglare accessories honeycomb , Radar
Single-color or Multi-color mode optional
Color Tolerance(only for white) : 5-SDCM

Input Voltage(V)

AC110-240V 50-60Hz/DC24V

IP Rating

IP66

Application

LANDSCAPE,Garden,Theme Park

Certification

CE, CQC, Emc, ETL, LVD

Warranty(Year)

2-Year

Color Temperature(CCT)

5000K (Daylight)

Material

Die casting Aluminium

Lighting solutions service

Lighting And Circuitry Design

Light Source

LED

Beam Angle(°)

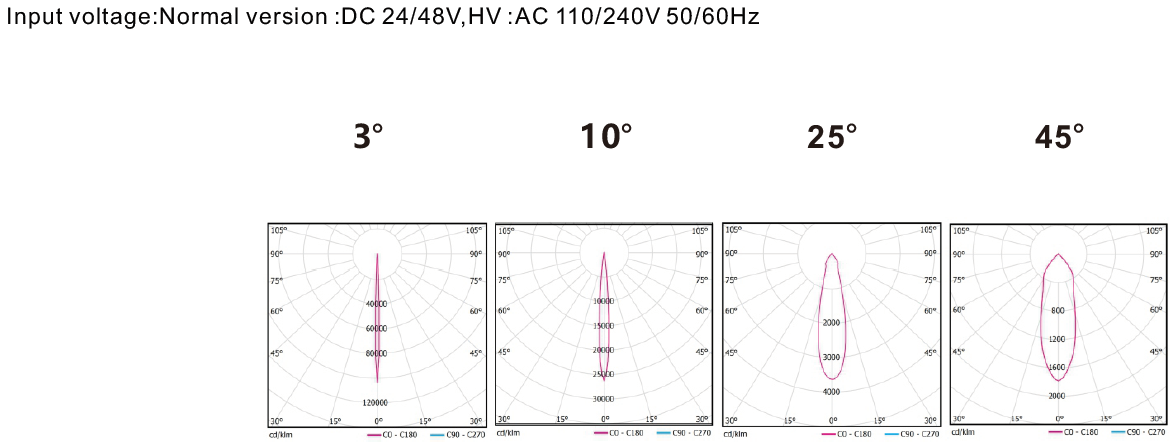

3° /10° /25° /45°

Place of Origin

Shenzhen, China

Model Number

Pro-S-WW-RS2D185

CRI (Ra>)

Working Lifetime(Hour)

50000

Product Name

Pro-S-WW-RS2D series LED facade light with IP66 meanwell driver

Light body color

RAL9023

Color Temperature(CCT)

2200K-6500K

Lamp Luminous Efficiency(lm/w)

100

IP Grade

IP 66

color

RGBW 4 in 1/RGB/Single

Rared power

18W/27W/36W

Driver Brand

MW driver

LED Chip

Cree
