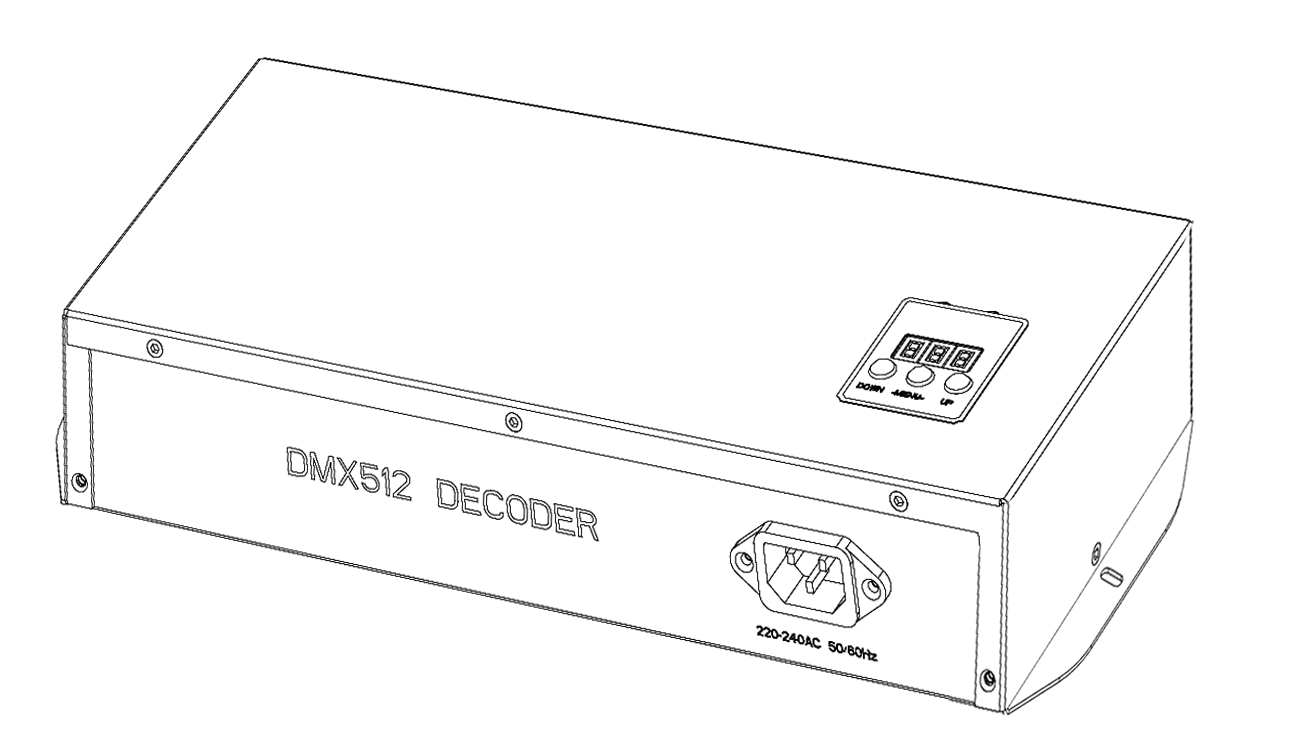

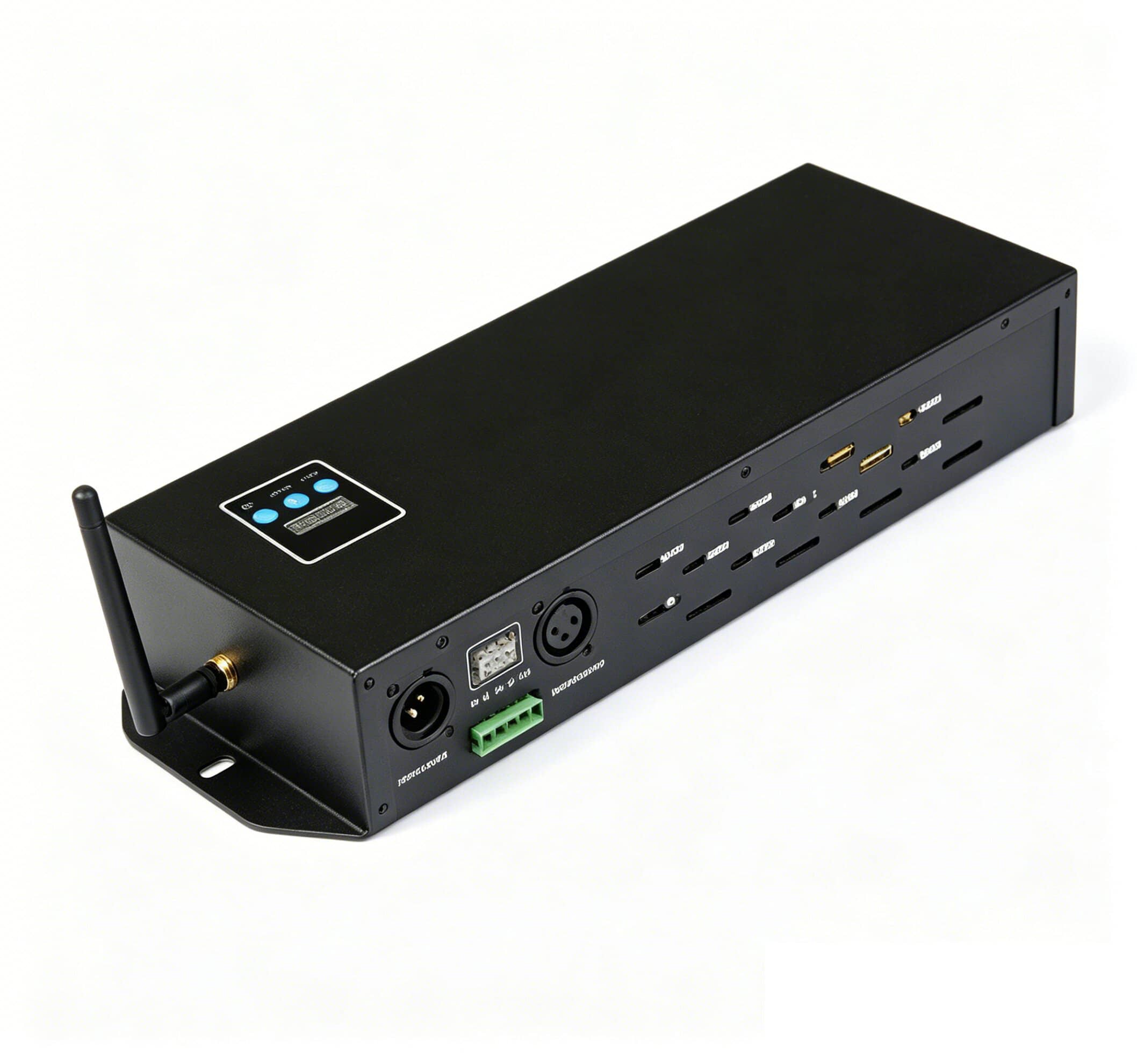

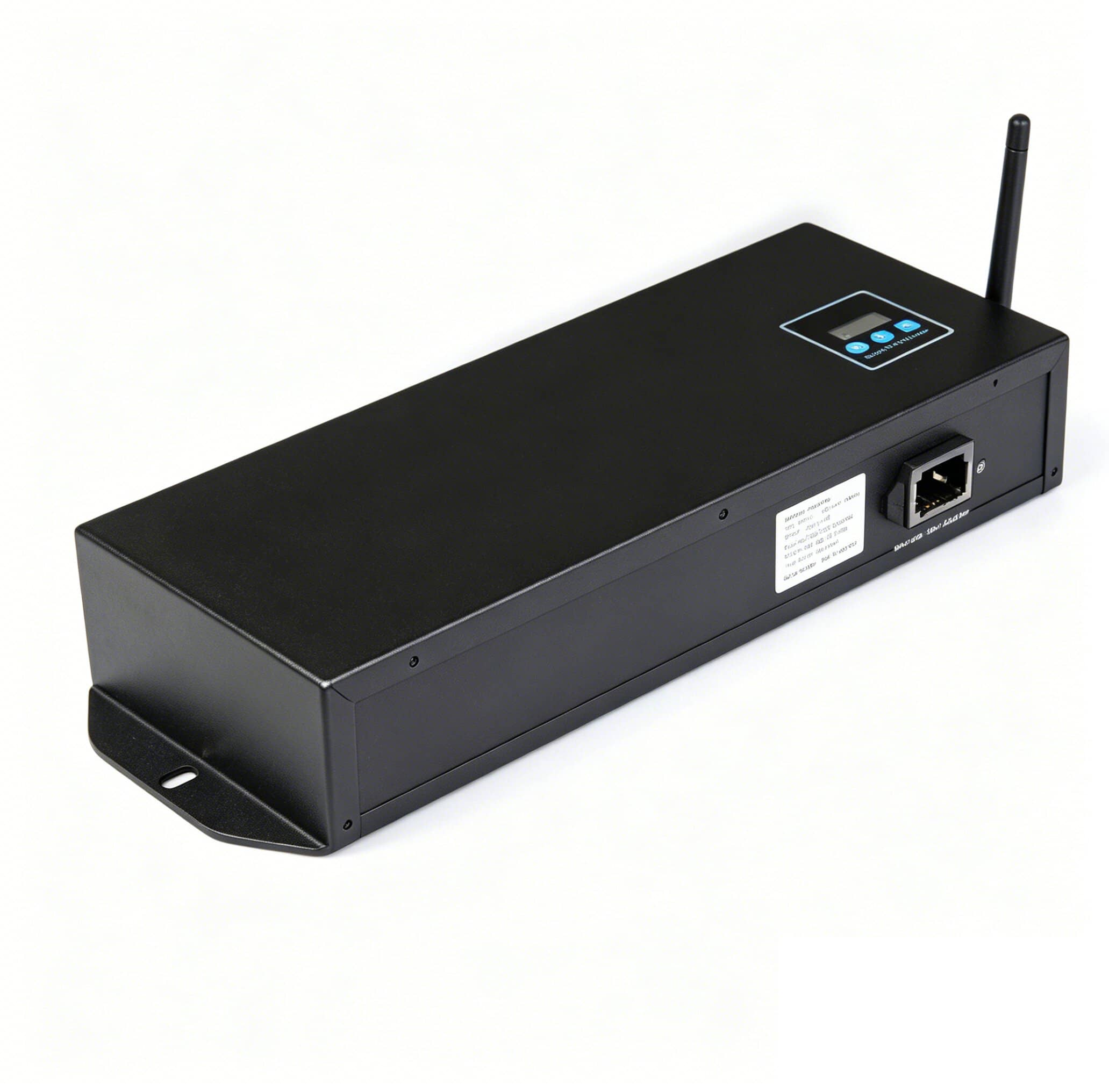

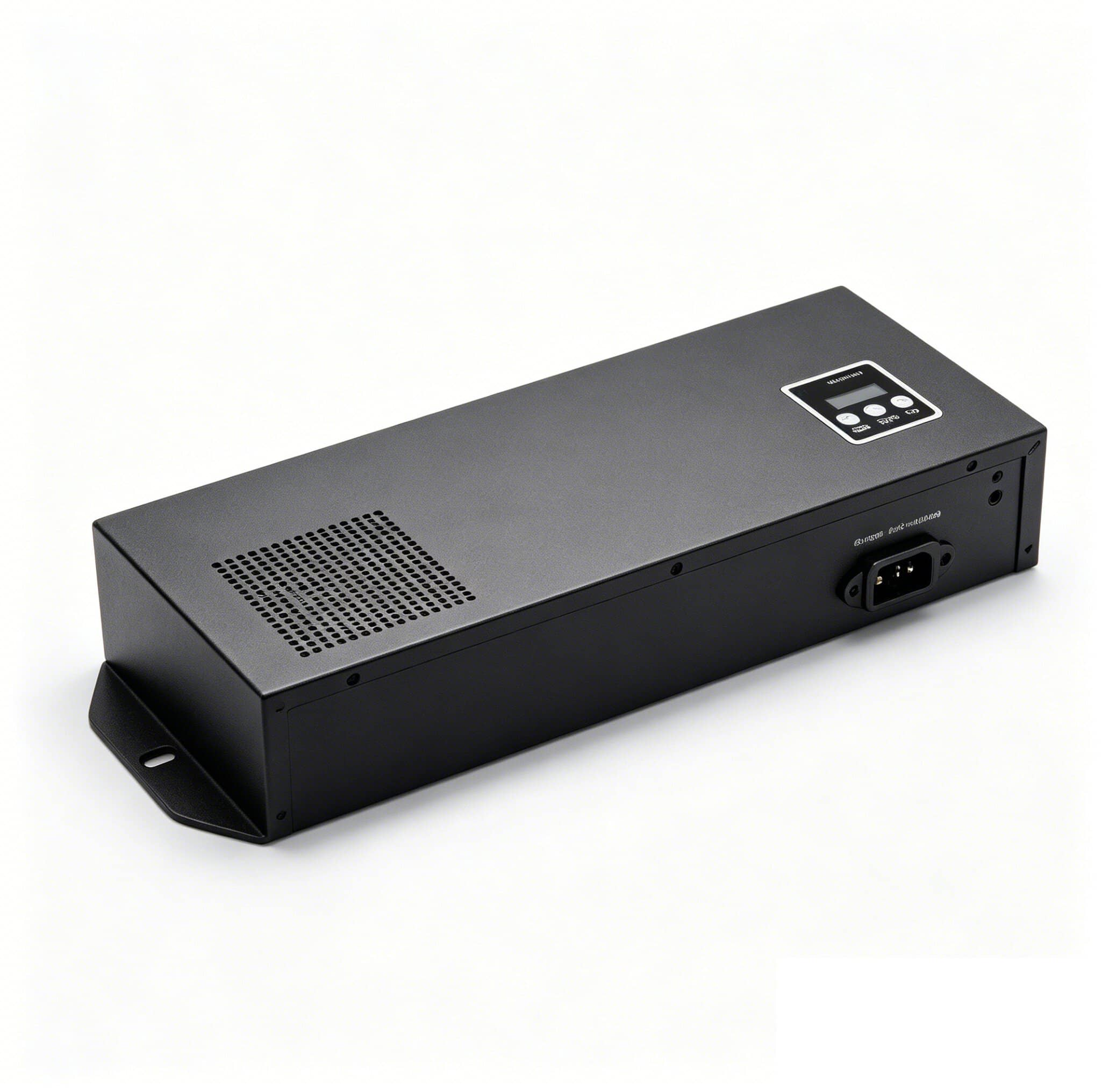

230VAC DMX Decoder/DMX Controller RGB RGBW RGBCW 3CH 4CH 5CH with 300W Power Supply Built-in

230VAC DMX Decoder/DMX Controller RGB RGBW RGBCW 3CH 4CH 5CH with MeanWell 300W Power Supply Built-in

DMX512 Standard: Precise control for professional lighting setups.

4 Channels: Versatile control for multiple LED lighting devices.

6A Output: Robust performance handling up to 288W load.

User-Friendly Interface: Easy setup with 3 buttons for address code adjustment.

Metal Construction: Durable design for long-lasting use.

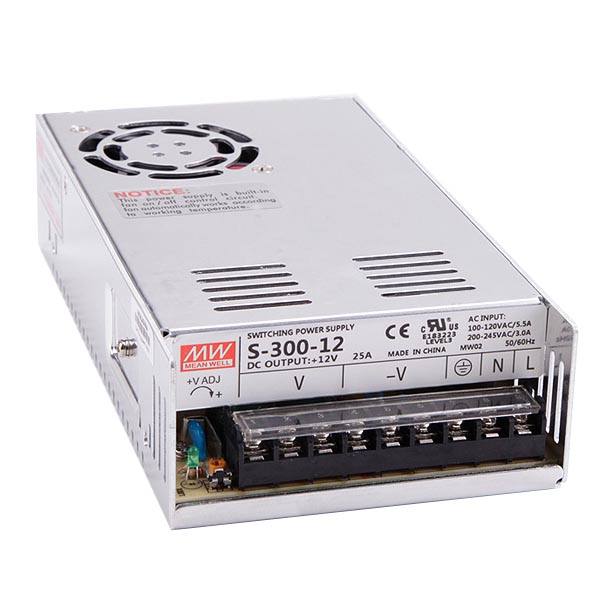

meanwell switching power supply .jpg

Built-in Meanwell power supply S-300-24/12 Indoor use

Power supply: 100-120V AC 50/60Hz or 220-240Vac 50/60Hz

Power consumption: 2W

DMX-control-channels: 6Channels include red, green, blue, white, strobe speed, brightness dimming -

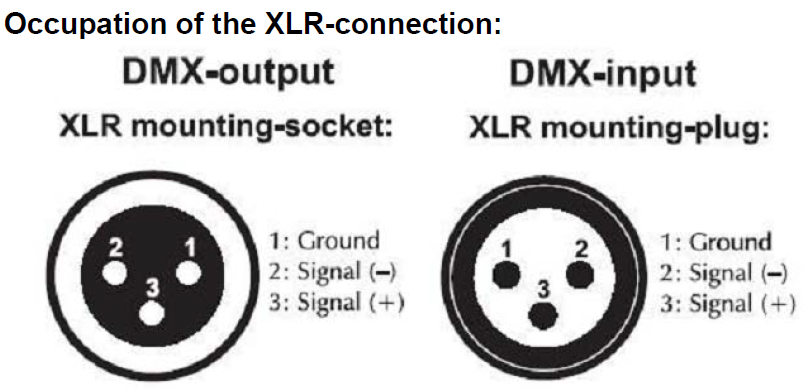

DMX-512-connection: 3-pin Size: (LxWxH): 360*128*60MM

Package Size:380*148*80MM

N.W: 2.4kg

G.W: 2.9kg

Maximum ambient temperature ta: 40°

Maximum housing temperature tB (steady state): 60°

Current Output: 4-loop

Connection: Total Positive

Output Voltage:12V DC OR 24V DC(Orders must be marked with the output voltage)

Output Current: Each circuit 4A, the largest 6A

Consumption 12V<280W,24V400W

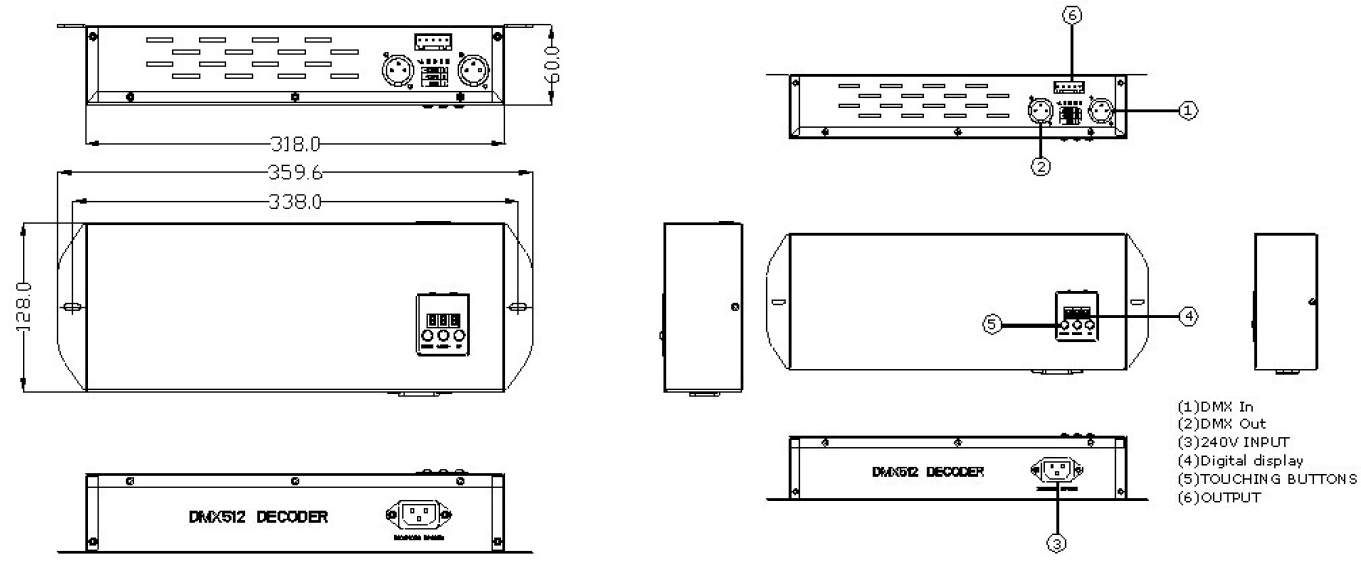

description 300w dmx.png

Type

DMX512

Warranty(Year)

3-Year

Lighting solutions service

Project Installation

Connection Mode

Signal cable

Max. Load Power

300

Place of Origin

Guangdong, China

Brand Name

LuxGreen

Product Weight（kg）

3.2

Output:

3ch , 4 ch, 5ch

Connection:

Total Positive

DMX-control-channels:

6CH(R,G,B,W,S,D)Master and slave mode function

DMX-512-connection:

3-pin, 3CH and 4CH , 5CH Master-slave connection machine

Output Current:

Each circuit 4A, the largest 6A

Consumption :

5V<80W, 12V<216W, 24V384W

Size: (LxWxH):

92*72*45MM

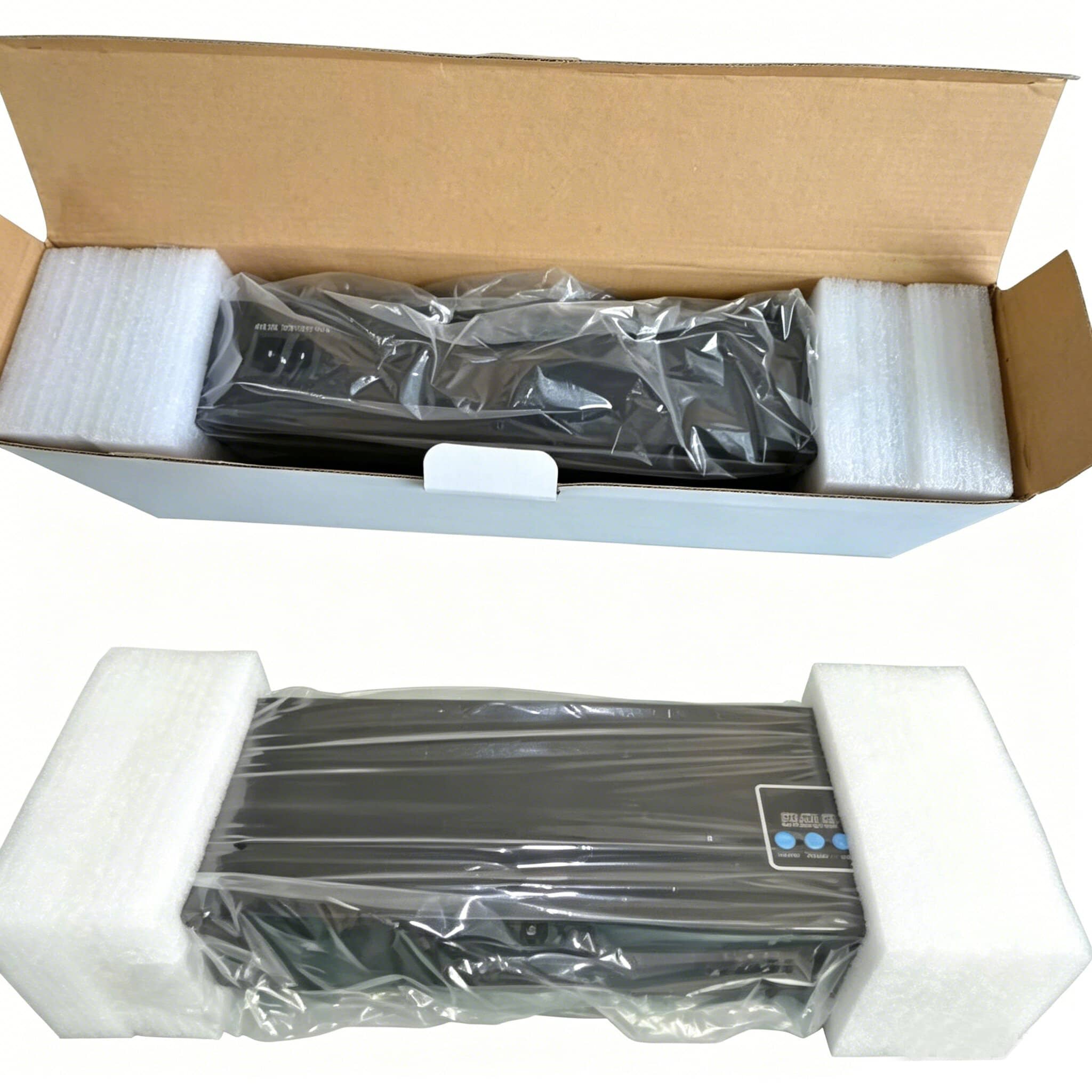

Packaging and delivery

Selling Units

Single item

Single package size

38X15X9 cm

Single gross weight

2.200 kg
