2.4G Wireless 230VAC DMX Decoder/DMX Controller RGB RGBW RGBCW 3CH 4CH 5CH with 300W Power Supply Built-in-PRIORLED Products丨 LED lighting products

2.4G Wireless 230VAC DMX Decoder/DMX Controller RGB RGBW RGBCW 3CH 4CH 5CH with 300W Power Supply Built-in

2.4G Wireless DMX RGB RGBW Controller without power adapter,FCC RoHS Certified

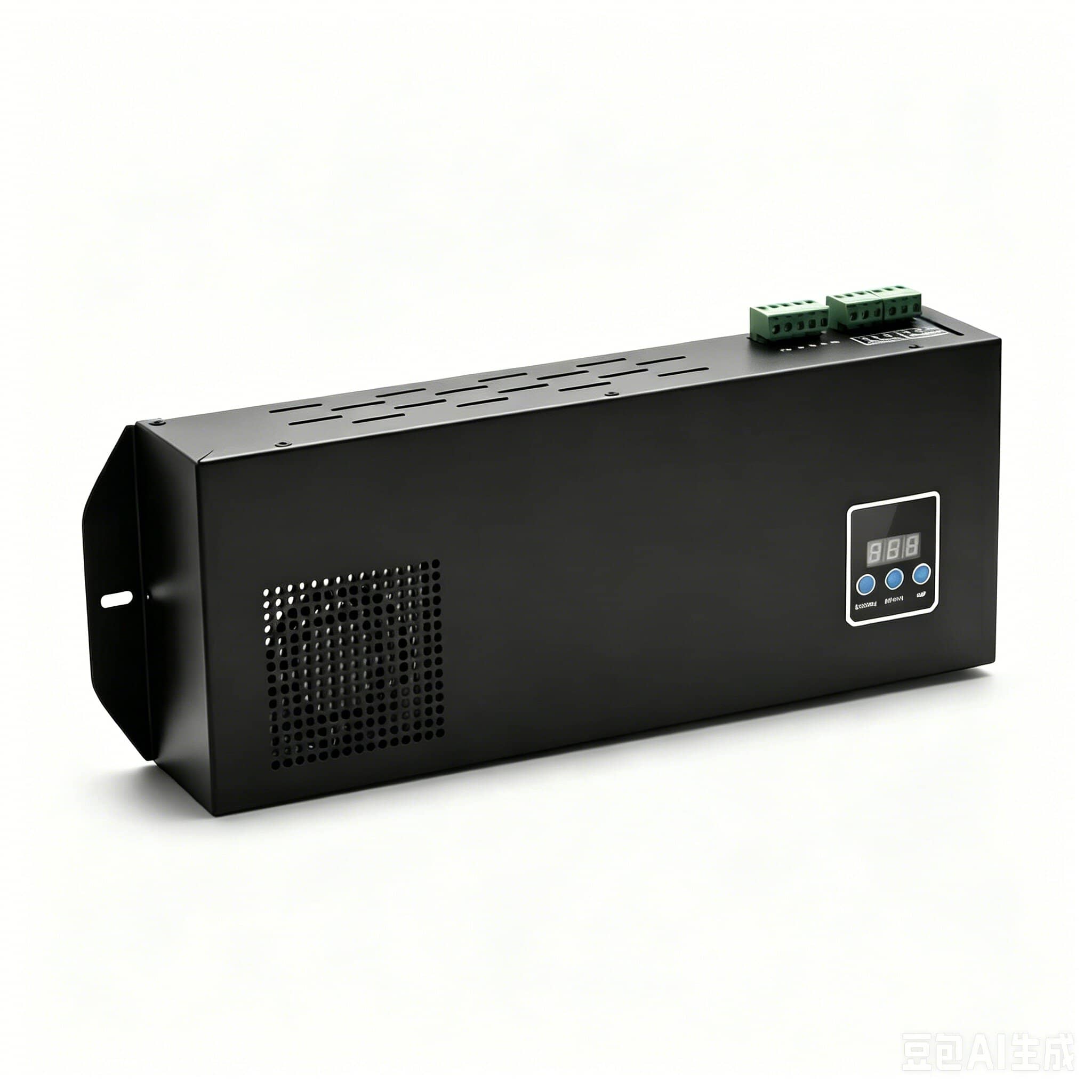

230VAC DMX Decoder/DMX Controller RGB RGBW RGBCW 3CH 4CH 5CH with MeanWell 300W Power Supply Built-in

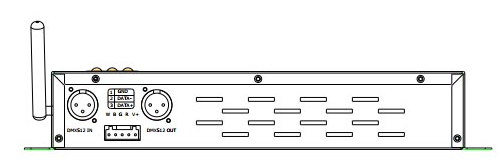

Ternminal connection, easy wiring

DMX512 Standard: Precise control for professional lighting setups.

4 Channels: Versatile control for multiple LED lighting devices.

6A Output: Robust performance handling up to 288W load.

User-Friendly Interface: Easy setup with 3 buttons for address code adjustment.

Metal Construction: Durable design for long-lasting use.

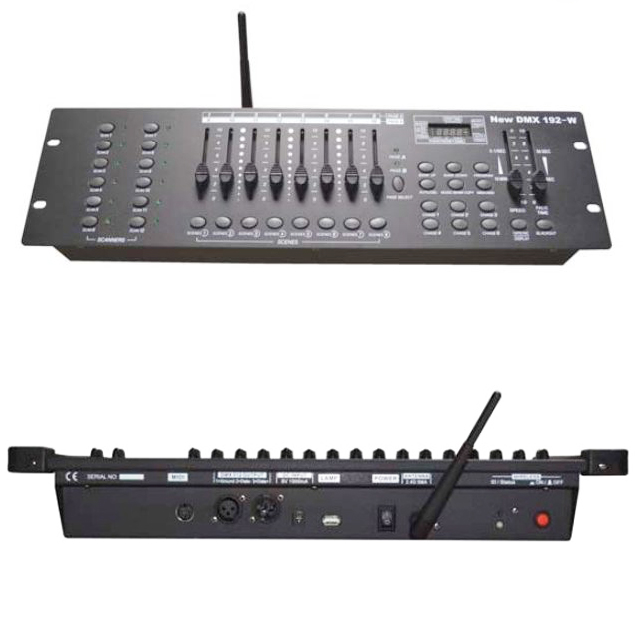

dmx192 wireless transimission controller.jpg

meanwell switching power supply .jpg

Built-in Meanwell power supply S-300-24/12 Indoor use

Power supply: 100-120V AC 50/60Hz or 220-240Vac 50/60Hz

Power consumption: 2W

DMX-control-channels: 6Channels include red, green, blue, white, strobe speed, brightness dimming -

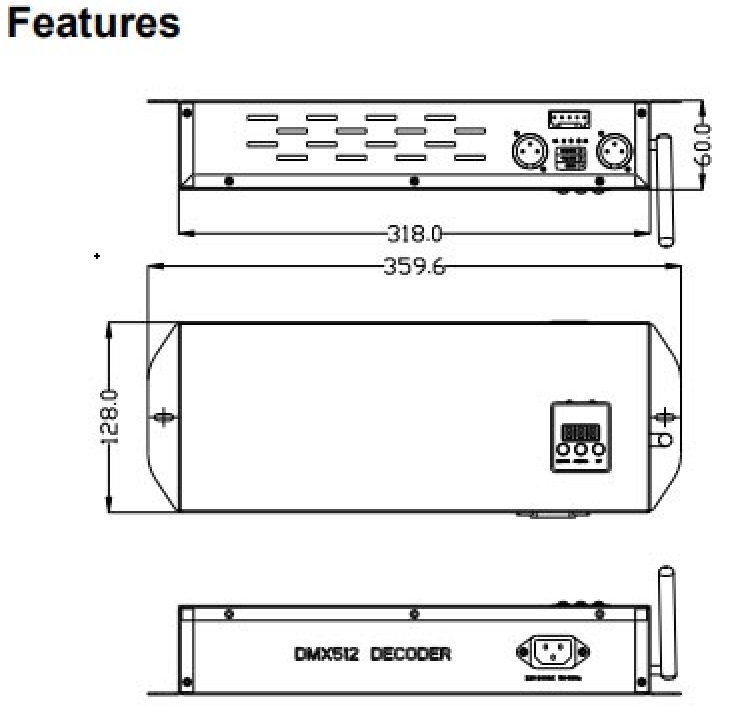

DMX-512-connection: 3-pin Size: (LxWxH): 360*128*60MM

Package Size:380*148*80MM

N.W: 2.4kg

G.W: 2.9kg

Maximum ambient temperature ta: 40°

Maximum housing temperature tB (steady state): 60°

Current Output: 4-loop

Connection: Total Positive

Output Voltage:12V DC OR 24V DC(Orders must be marked with the output voltage)

Output Current: Each circuit 4A, the largest 6A

Consumption 12V<280W,24V400W

description 300w dmx.png

Type

Wireless DMX512

Output

4 Channels

Output Current

Remote Distance

50.0M

Static Power Consumption

Warranty(Year)

3-Year

Lighting solutions service

Project Installation

Material

Aluminum alloy

Connection Mode

DMX XLR cable

Max. Load Power(W)

288

Place of Origin

Shenzhen, China

Brand Name

LuxGreen

Product Weight（Kg）

3.5

Output voltage

12V/24V DC

Control channels

3CH /4CH/6CH

Control way

Mnaual Wireless control

DMX-512-connection

XLR terminals

Display

Digital display

Maximum ambient temperature ta:

Package Size:

380*148*80MM

Warranty

3 years

Voltage

100-120V / 220-240VAC 50-60Hz

Packaging and delivery

Selling Units

Single

Single package size

38X15X8 cm

Single gross weight

2.500 kg

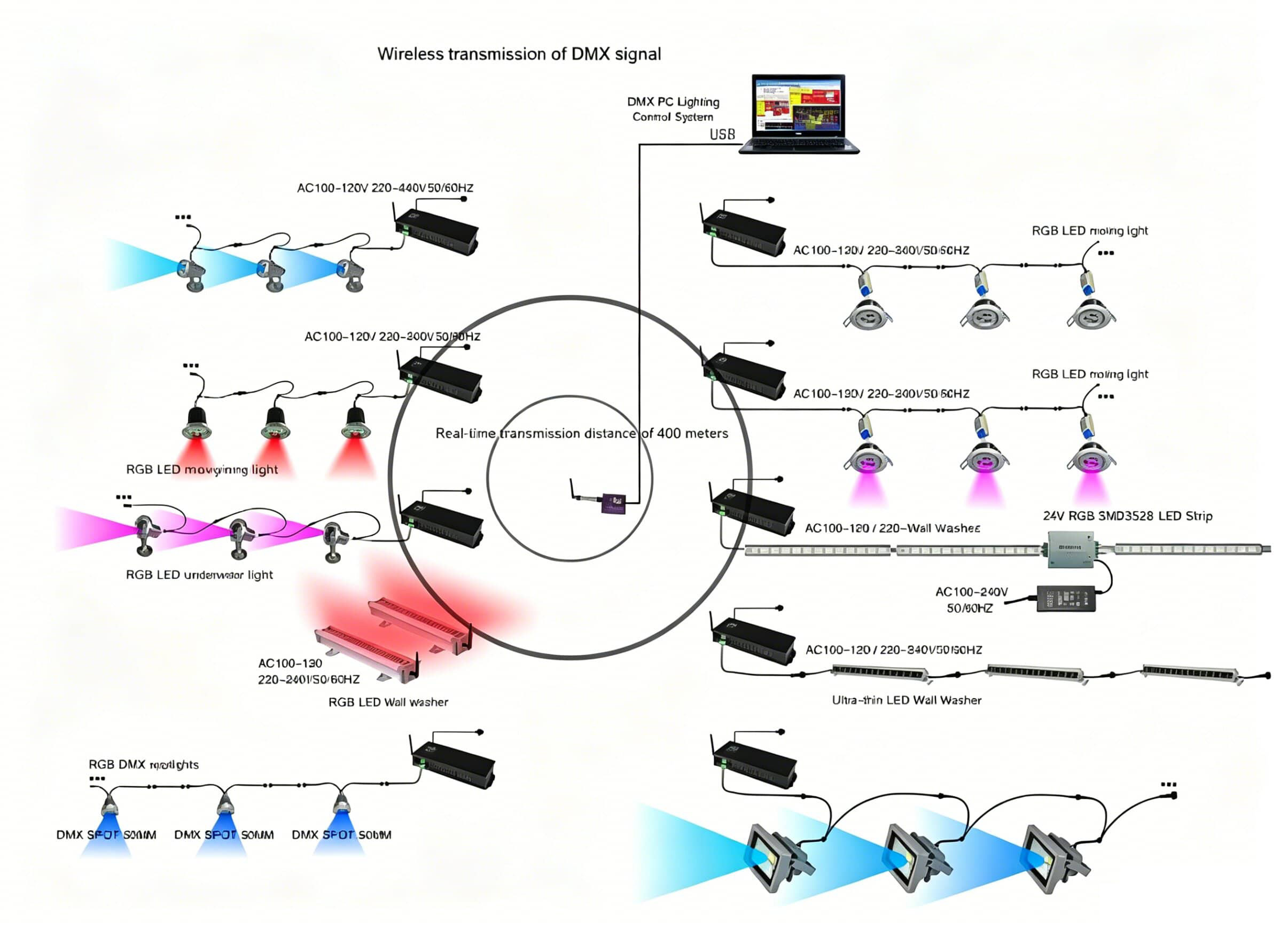

wireless (18)-tuya.jpg
