MR WT35 DMX Handheld Encoder

In the field of landscape LED control, the DMX512 drive mode is very popular in the application of LED lamps. Due to the particularity of the DMX512 protocol, the DMX512 protocol used in LED lamps must be addressed and the DMX512 channel address on a single branch should be reasonably allocated. The MR-Control system introduces the MR-WT35 handheld addresser, which can quickly and easily write addresses for DMX512 addresses, and supports internal test animation to verify the written DMX512 addresses. The MR-WT35 handheld addresser supports SD memory cards, which can store multiple scene files of offline data, and supports multiple scene loop playback, and the specified playback of a single scene. It can simulate the DMX512 console, can send channel data for any channel 1-512 in the DMX512 channel, and can be used as a simple DMX512 console. Support a variety of quick test methods, can be used for lamps running point, color change and other test modes to verify the addressing of lamps. Supports parameter setting, current output adjustment, brightness adjustment, and firmware upgrade of the MR-DMX05 chip. With the color palette function, you can select a certain color value in the color palette for control, and support a variety of four-color modes. The MR-WT35 handheld addresser supports Type-C interface and DC6-24V in-line power supply.

1. MR-WT35 Device Can Set The Number of Loaded Channels, Baud Rate, Playback Speed, Color Number and Other Parameters;

2. With 1-Port DMX512 Signal OutPut, Addressing Signal Support Differential Mode;

3. With 1-Port TTL Signal OutPut, Support Single-Wire and Dual-Wire Chip Driver Chip;

4. Support OutPut 2M Clock Frequency and 6144 Channel Load;

5. You Can Specify The Starting Channel, The on-Load Channel of a Single Chip, and The Lamp Number, and Verify the Address Through Automatic/Manual Test Mode

6. The Device Has a Variety of Built-in Test Animation Effects, Such as a Variety of Color Gradient, Automatic/Manual Running pPoint, Overall Gradient and Other Effects;

7. Support Brightness Adjustment, Single Channel Brightness Adjustment Function;

8. With an SD Card Slot, Support SD Card to Store Animation Data, and Can Specify a Play Scene, Playback Speed Can be Adjusted;

9. Support Gamma Correction Adjustment Settings and Positive and Negative Direction Data OutPut Settings;

10. Can Simulate DMX512 Console, for DMX512 Channel 1-512 Channel Arbitrary Send Channel Data, Can be Used as a Simple DMX512 Console;11. Support Standard RDM Protocol, Can Search RDM Lamps, Static Detection, Write DXM512 a Address by UID and Other Functions;

12. Support Parameter Setting, Current Output Adjustment, Brightness Adjustment and Firmware Upgrade for MR Series Chips;

13. With The Function of Color Palette, You Can Select a Certain Color Value in The Color Palette to Control, and Support a Variety of Four-Color Modes;

14. Supports Type-c Port and DC6-24V in-Line Power Supply;

15. Support a Variety of DMX512 Chip Address,Support MR, UCS, SM, TM, HI, HM, GS, Custom DMX Chip, etc.;

16. Support offline Firmware Upgrade and Touch Screen Firmware Update;

17. Support Multi-Language Switching Mode.

I. Controller Appearance

① Touch Screen 　 ② Power Switch　 ③ SD Card ④ DC6~24V

⑤ Type-C Interface ⑥ DMX512 Signal Outpu ⑦ TTL Signal Output

II. OutPut Port Definitio

5Pin Terminals Sort Sequentially From Left to Right， As Shown Below：

III. TTL OutPut Port Definition

3Pin Terminals Sort Sequentially From Left to Right， As Shown Below：

IV. Controller Three View Size Chart

MR-WT35 Front View：

MR-WT35 Two Side View：

Remark：Above Three Views The Size Unit is mm.

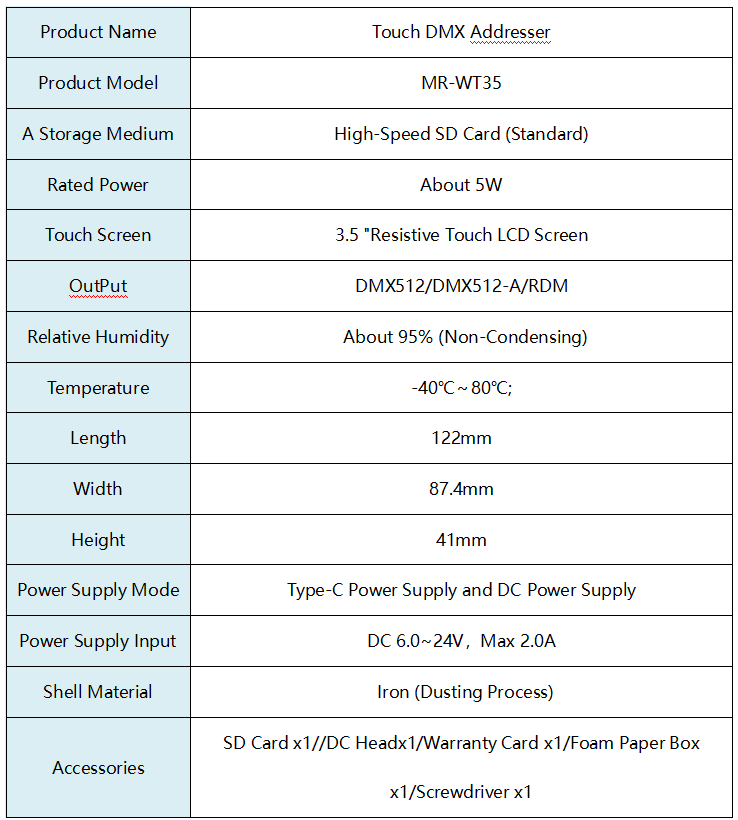

IV. Basic Parameter Table

Widely used in stage lighting, event lighting, architectural facade lighting, LED strip light projects, and DMX512 controlled lighting systems. This encoder simplifies the process of DMX address assignment, chip configuration, and on-site testing, saving time and effort for lighting engineers and installers
