Specification
| LED Brand | CREE/OSRAM/LUMILEDS SMD | ||
| LED Quantity | 48 PCS | 48 PCS (RGBW) | |
| System Power Consumption (Max ±10%) | 18W (SINGLE COLOR) | 14.4W (RGB) | 18W |
| Lighting Efficiency | 72LM/W | 26LM/W | 30LM/W |
| Greyscale Level | 65536 | ||
| Beam Angle | 40° （sysmmetrical）/ 25°* 35° (asymmetrical) | 20°/30°/40° | |
| Power Supply Type | 24VDC | ||
| Environment Scope | -40℃ - 50 ℃ (temperature) / 10％ - 95(humidity) | ||
| Material (Lamp Body) | High Strength Stretched Alluminum+High Definition Tempered Glass | ||
| Connection Line Type | Signal / Power: Outdoor Specific Rubber Sheathed Wire | ||
| Specification Dimension (Excluding the bracket) | 1000x23.5x23.3mm | ||
| Weight | 0.7kg | ||
| Number of Pixels | 8 | ||
| Control Type | DMX512 | ||
| Protection Level | IP66 | ||
| Service Life | ≥50,000hrs | ||
| Opertation Environment | Outdoor | ||
| Color | Luminous Flux | ||
| 3000K | 1296 lm | - | - |
| RGB | - | 3750lm | - |
| RGB+W | - | - | 540lm |

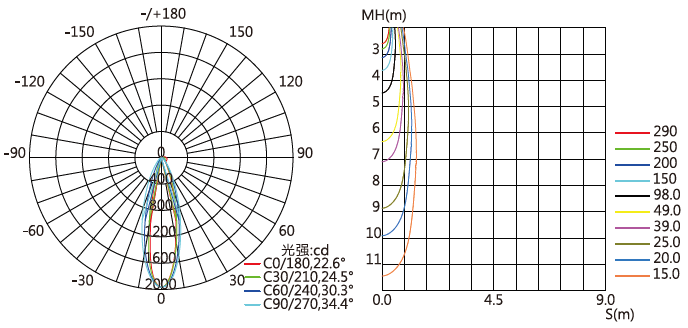

Beam Angle Diagram
Lighting Distribution / Space ect. Curve Diagram
Light Source Specification: SMD2835
Beam Angle （50%） 25° * 35°
Average Beam Angle (50%) : 28.0 Degrees Unit: lx

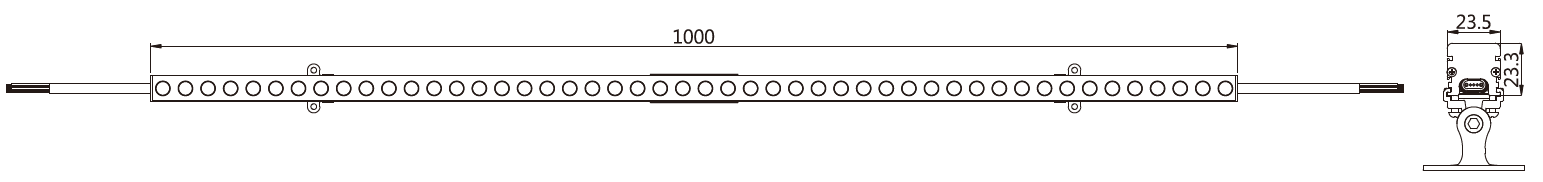

Product Dimension Unit : mm
Applications:
High-rise building curtain wall, commercial plaza facade, riverside landscape wall, hotel & shopping mall decorative wall, scenic architecture, municipal pedestrian street and villa exterior wall wash lighting.
1. Building Exterior Facade Lighting
Curtain wall of commercial complex, office building, high-rise residential building, landmark architecture; outline contour lighting for skyscrapers and villas, uniform wall washing for exterior wall decorative surfaces.
2. Landscape & Municipal Engineering
Urban riverside embankment, park railing, landscape retaining wall, pedestrian street facade, overpass side wall, city characteristic scenic spot wall lighting.
3. Commercial Indoor & Semi-outdoor Decoration
Shopping mall interior wall, hotel lobby background wall, restaurant feature wall, exhibition hall decorative wall, storefront facade outline lighting.
4. Cultural & Tourism Construction
Ancient building outer wall renovation lighting, scenic spot architectural facade, cultural park building wall, characteristic town building wash lighting.
5. Corridor & Overhang Lighting
Outdoor building eaves, building outer corridor, balcony outer wall, awning bottom hidden installation lighting.
