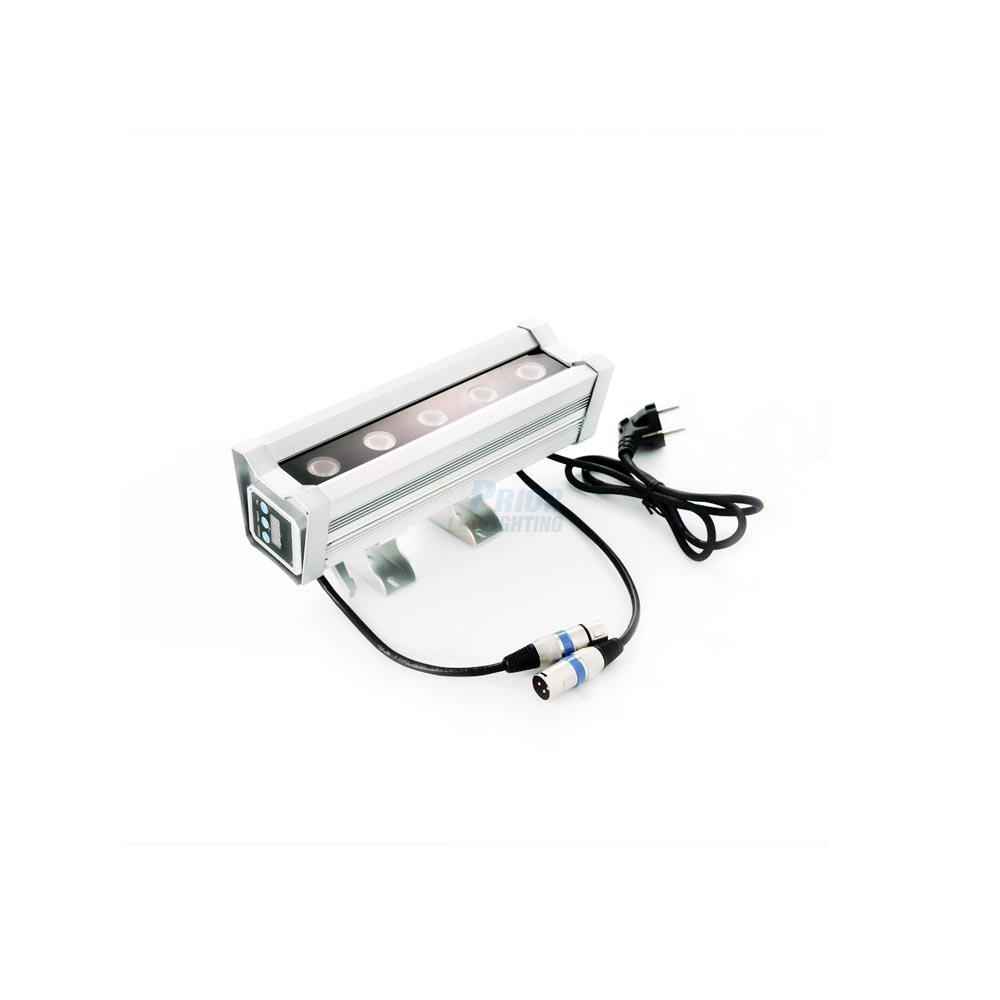

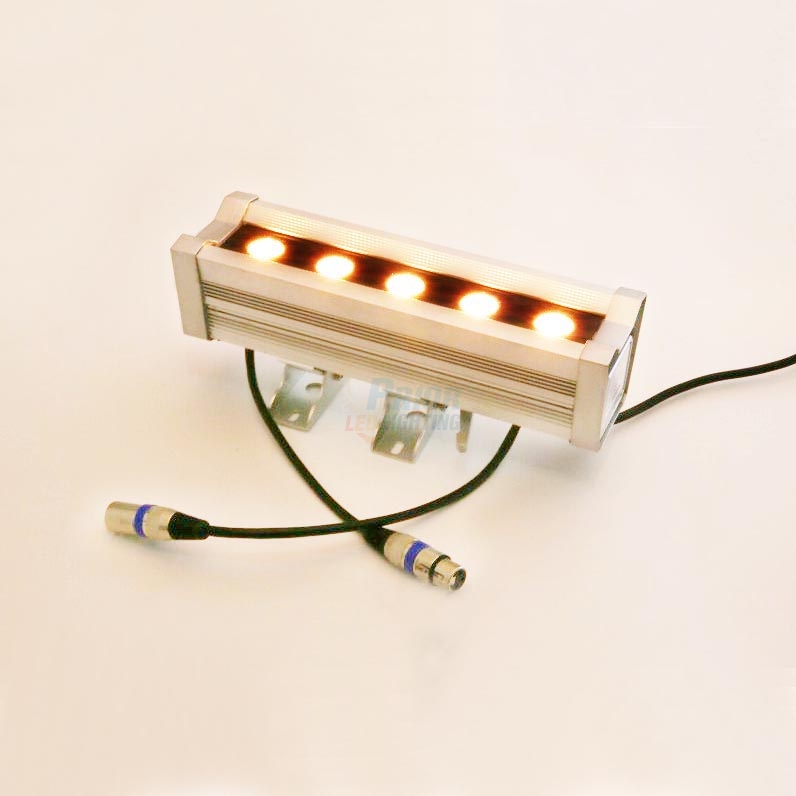

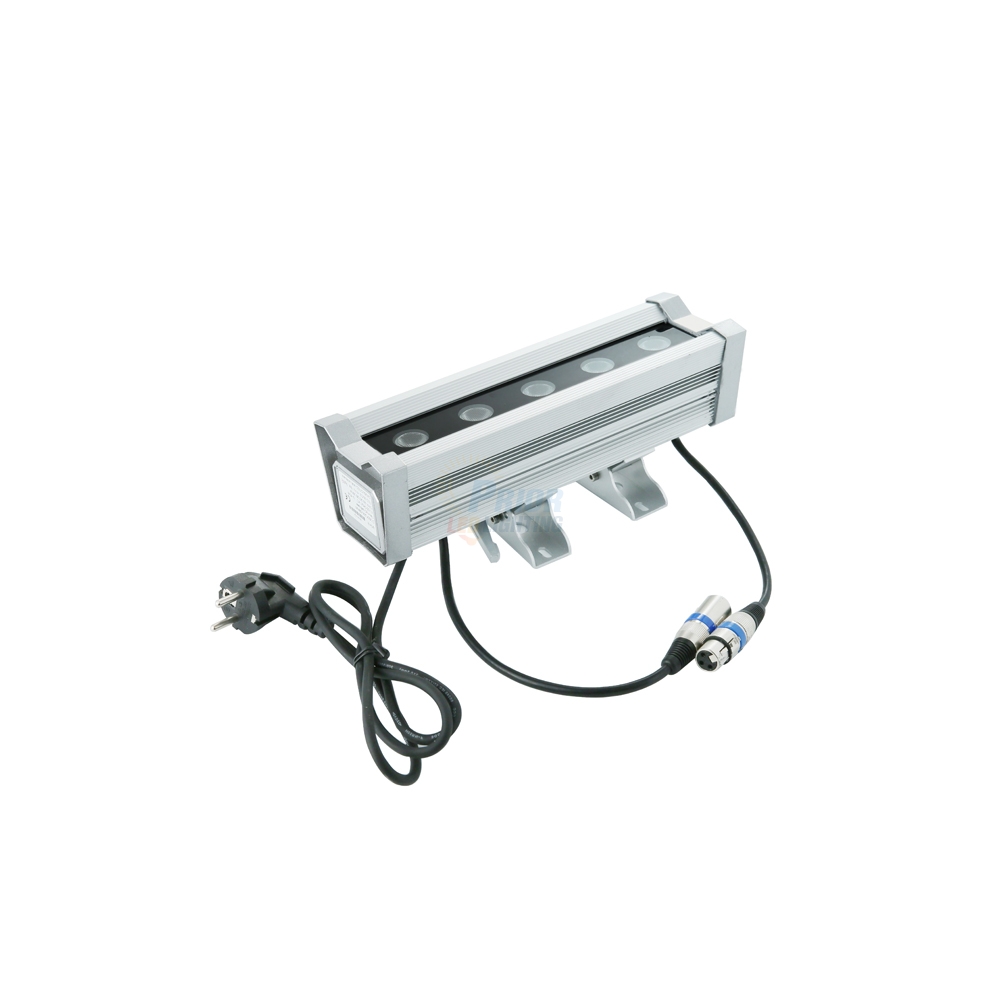

1FT 40W Intelligent RGBW LED Wall Washer DMX512 Controlled

4 in 1 RGBW Architecture Wall Washer with High Power LEDs for Indoor/Outdoor use and Color control available via DMX or built-in color settings. Use for lighting building perimeters, casinos, gardens, bridges, shopping centers, theme parks, entertainment plazas and more. The high powered 4in1 LED (Red, Green, Blue and white) use a single LED to produce even and consistence color effects to a solid white and attracts attention and can be seen from far distances.

High Impact Dynamic RGBW Wall Washer Bar

• Durable aluminum alloy housing with enamel finish and tempered glass lens are fully sealed for use in wet locations (IP65)

• Built-in driver and five foot grounded power core simplify installation

• Multiple fixtures contolled individually, or interconnected and controlled syncronously,

• Independent Mode: Choose the build-in via the buttons on the end cover

• DMX Mode: International standard DMX 512 signal (IP67 connector)

• Master/Slave Mode: Auto online and synchronization working

• Integrated mounting holes in base/leg brackets with adjustable tilt design for installation flexibility

• 60,000 hours rated life

STANDALONE COLOR CONTROL - WHEN AND HOW TO USE IT:

Multiple fixtures contolled individually, or interconnected and controlled syncronously - mix Red, Green and Blue values and set flash or fade modes with the built-in programs (see step 5 and the following example below for details). To syncronize up to 30 fixtures, interconnect their signal cables and set all but the first fixture to “001”, then set the first fixture according to the following.

Output

LED Channels Red/Green/Blue/White/Stroboflash/Dimming

Beam Angle 45°

Lumens All Channels Red:300lm Green:450lm Blue:175lm White:750lm (6000K)

Electrical

Input Voltage 100 to 240 VAC,50/60Hz

Power Consumption 40W

(Maximum at full output,steady state)

Control Control System Compatible with DMX512 FOR COLOR CONTROL ( 32/64bit controlling software)

Interface XRL female male connector plug

Physical

Dimensions 270 x 104.3 x108.5

(Height x Width x Depth) (Including mounting bracket)

Weight 1.4Kg

Packing 12units / L65xW25xH45mm

Housing Material Aluminum Alloy, Mate Silver

Lens PMMA

Temperature Range -40 to 40 °C Operating / -20 to 40 °C Startup / -40 to 80 °C Storage

Mechanical Impact IK06

Certification and Safty

Approbation CE ROHS

Environment Dry/Damp/Wet Location, IP66

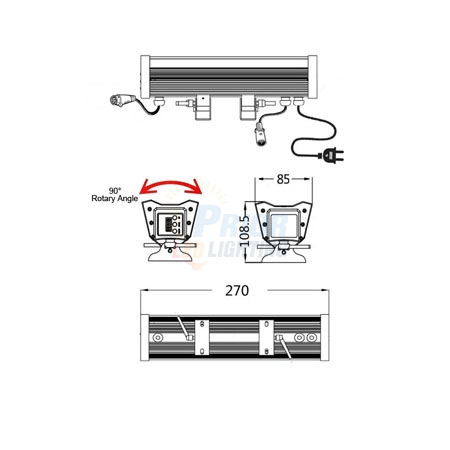

Dimension Unit: MM
