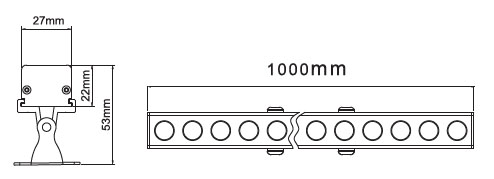

Dimension

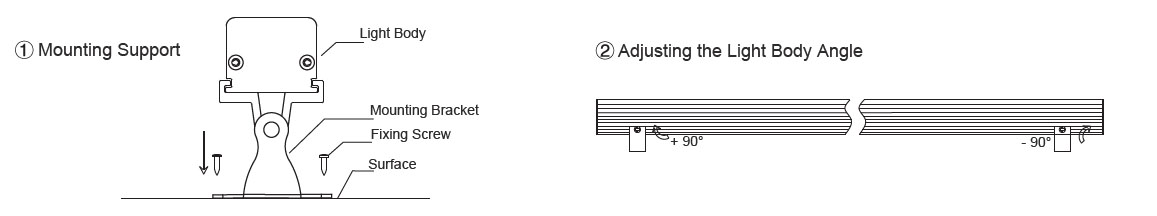

Installation

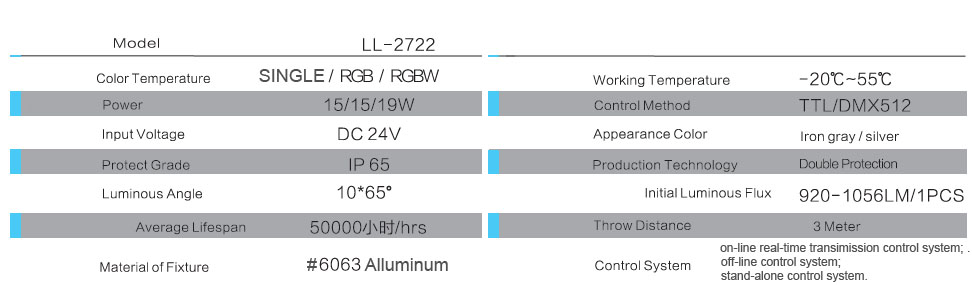

Specifications
| Beam Angle | 10 * 65 degrees | Rated Power | 415 Watts / m |
| Connection Type | Pigtail | Dimension | 1000 mm * 27 mm * 22 mm |
| Dimmable | Dimmable | Housing Finish | Silver White / Grey |
| LED Brand | Epstar | LED Quantity | 48 LEDs / m |
| LED Type | 5050 SMD | Standards And Certifications | CE / ROHS / FCC |
| Special Features | Constant Voltage Power | Waterproof Grade | IP65 |
| Input Voltage | 12-24 VDC | Packing Dimension | |
| Packing | Packing Weight |
All specifications are subject to change without notice.
| Emitting Color | Intensity | CCT/Wavelength | CRI | Luminous Efficiency | |
|---|---|---|---|---|---|
| Pure White |
|
1 | 1 | 1 | 1 |
| Warm White |
|
1 | 1 | 1 | 1 |
| Nature White |
|
1 | 1 | 1 | 1 |
| Red |
|
1 | 1 | 1 | 1 |
| Green |
|
1 | 1 | 1 | 1 |
| Blue |
|
1 | 1 | 1 | 1 |
| Yellow |
|
1 | 1 | 1 | 1 |
| Purple |
|
1 | 1 | 1 | 1 |
| RGB |
|
1 | 1 | 1 | 1 |
| RGB+CW |
|
1 | 1 | 1 | 1 |
| RGB+WW |
|
1 | 1 | 1 | 1 |
All specifications are subject to change without notice.
